To prevent malware infections or data loss in your organization, you may want to block certain kinds of USB devices, such as a USB flash drive or camera, and allow other kinds of USB devices, such as a keyboard or mouse. Or, you may want to allow USB devices by device IDs.
This article describes how to configure such controls using the Intune Administrative Templates.
Create the profile
Sign in to the Microsoft Endpoint Manager admin center.
Select Devices > Configuration profiles > Create profile.
Select Windows 10 and later in Platform, select Administrative Templates in Profile, then select Create.
In Basics, enter a descriptive name for the profile in Name. For example, Restrict USB devices. Enter a description for the profile in Description (this setting is optional).
Select Next.
In Configuration settings, configure the following settings:
Select Prevent installation of devices not described by other policy settings, and then select Enabled.
Select Allow installation of devices using drivers that match these device setup classes, and then select Enabled. Add the GUID of device classes that you want to allow. In the following example, Keyboard, Mouse, and Multimedia classes are allowed.
Select Allow installation of devices that match any of these Device IDs, and then select Enabled. Look up the device vendor ID or product ID for devices that you want to allow, and then add the IDs to the list.
In Assignments, select the device groups that will receive the profile, and then select Next.
In Review + create, review your settings. When you select Create, your changes are saved and the profile is assigned.
SAMSUNG Mobile USB CDC Composite Device Driver 2.12.4.0 for Windows 10 64-bit download - X 64-bit Download - x64-bit download - freeware, shareware and software downloads. In Internet Explorer, click Tools, and then click Internet Options. On the Security tab, click the Trusted Sites icon. Click Sites and then add these website addresses one at a time to the list: You can only add one address at a time and you must click Add after each one. Verify on Windows 10 devices. After the device configuration profile is deployed to the targeted Windows 10 devices, verify that it works correctly. If a USB device is not allowed to be installed, you see the following message: In the following example, the iPad is blocked because its device ID isn't in the allowed device ID list. Fix: USB Composite Device can’t work properly with USB 3.0. If the issue is with your Computer or a Laptop you should try using Restoro which can scan the repositories and replace corrupt and missing files. This works in most cases, where the issue is originated due to a system corruption.
Verify on Windows 10 devices

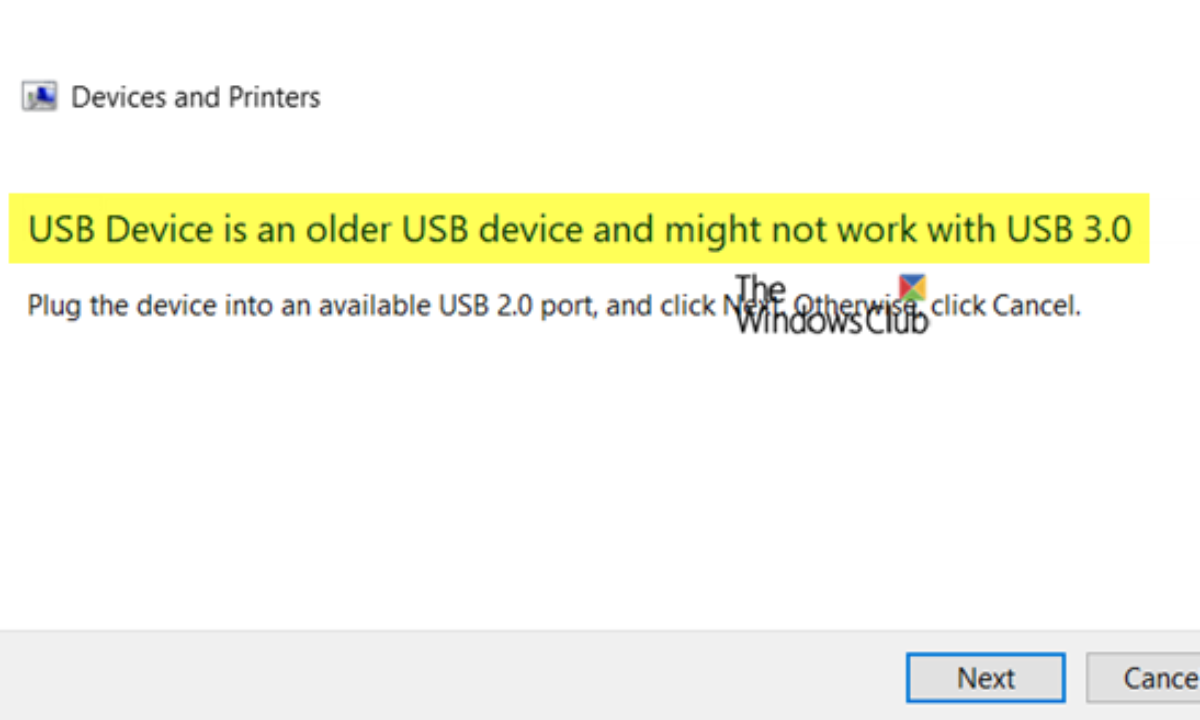

USB Composite Device is an older USB device and might not work with USB 3.0. Plug the device into an available USB 2.0 port, and click Next. Otherwise, click Cancel. The printer cable was working perfectly fine until a few weeks ago. The same problem erupted before but after several minutes on trying to fix it, the printer worked.
After the device configuration profile is deployed to the targeted Windows 10 devices, verify that it works correctly.
If a USB device is not allowed to be installed, you see the following message:
In the following example, the iPad is blocked because its device ID isn't in the allowed device ID list.
A device is incorrectly blocked
You may find that USB devices that match the allowed device classes are incorrectly blocked. For example, a camera is blocked although the Multimedia class GUID {4d36e96c-e325-11ce-bfc1-08002be10318} was specified in the Allow installation of devices using drivers that match these device setup classes setting.
To fix this issue, follow these steps:
On the Windows 10 device, open the
%windir%infsetupapi.dev.logfile.Look for Restricted installation of devices not described by policy in the file, and then locate a line that reads Class GUID of device changed to: {GUID} within the same device install section.
In the following example, locate the line that reads Class GUID of device changed to: {36fc9e60-c465-11cf-8056-444553540000}.
In the device configuration profile, add the class GUID to the Allow installation of devices using drivers that match these device setup classes setting.
If the issue persists, repeat steps 1 to 3 to add the additional class GUIDs until the device can be installed.
In the example, the following class GUIDs have to be added to the device profile:
- {36fc9e60-c465-11cf-8056-444553540000}: USB Bus devices (hubs and host controllers)
- {745a17a0-74d3-11d0-b6fe-00a0c90f57da}: Human Interface Devices (HID)
- {ca3e7ab9-b4c3-4ae6-8251-579ef933890f}: Camera devices
- {6bdd1fc6-810f-11d0-bec7-08002be2092f}: Imaging devices
Class GUIDs to allow certain USB devices
To allow a keyboard and mouse, add the following GUIDs to the device profile:
- {4d36e96b-e325-11ce-bfc1-08002be10318}: Keyboard
- {4d36e96f-e325-11ce-bfc1-08002be10318}: Mouse
To allow cameras, headphones and microphones, add the following GUIDs to the device profile:
- {36fc9e60-c465-11cf-8056-444553540000}: USB Bus devices (hubs and host controllers)
- {745a17a0-74d3-11d0-b6fe-00a0c90f57da}: Human Interface Devices (HID)
- {4d36e96c-e325-11ce-bfc1-08002be10318}: Multimedia devices
- {ca3e7ab9-b4c3-4ae6-8251-579ef933890f}: Camera devices
- {6bdd1fc6-810f-11d0-bec7-08002be2092f}: Imaging devices
- {4D36E97D-E325-11CE-BFC1-08002BE10318}: System devices
- {53d29ef7-377c-4d14-864b-eb3a85769359}: Biometric devices
- {62f9c741-b25a-46ce-b54c-9bccce08b6f2}: Generic software devices
To allow 3.5 mm headphones, add the following GUIDs to the device profile:
- {4d36e96c-e325-11ce-bfc1-08002be10318}: Multimedia devices
- {c166523c-fe0c-4a94-a586-f1a80cfbbf3e}: Audio endpoint
Note
Depending on the devices and drivers to be installed, the actual GUIDs to be added may vary.
Usb Composite Device Windows 10 Ever Foundry -
Third-party information disclaimer
The third-party products that this article discusses are manufactured by companies that are independent of Microsoft. Microsoft makes no warranty, implied or otherwise, about the performance or reliability of these products.
- Update USB Composite Devices is needed for the Operating System to Establish a Connection with the devices that fall under the Composite devices category.
- This driver allows the communication between the operating system and the external devices.
- It translates the signals to the Operating system in an appropriate manner. And so without this driver, the computer will not be able to interact with external devices including certain types of USB devices.
- If there are problems while connecting external devices, it is possible that the USB Composite Devices driver is outdated.
- But if you are facing issues with the device, the below tutorial will work for Windows 10/8.1/7 to update the Update USB Composite Devices Driver.
Jump to:
People also search for:
How to update the Update USB Composite Devices driver:
- Log into your computer using the Administrator account.
- Open the Run dialog box using the below Keyboard Shortcut.
- Enter the following command, to open the device manager, and press enter.
- Double click and expand the Universal Serial Bus Controller.
- Right-click the Update USB Composite Devices driver and click on update driver.
- Select the search automatically option.
- It will search and find the Update USB Composite Devices automatically as shown in the image.
If the above steps do not work, the users can go to the official site and download the respective drivers and install them.
What Is A Usb Composite Device
Or the user can ensure that the windows update is properly installed so that the Update USB Composite Devices is installed.
Verdict:
We learned the simplest way to update the Update USB Composite Devices in this post. We have to use the device management software for updating the Update USB Composite Devices Driver. If that doesn’t work, please go to the official site to download and install the software.
Please let us know your questions and opinion in the comments below.
For more awesome posts, please stay tuned to TecKangaroo.
